Графические OLED фирмы Raystar с емкостной сенсорной панелью
Size	Mode	Picture	Available color	Complete model code	Resolution	Interface	Voltage	Operation Temp.	Storage
1.18"	REX128128D+CTP		White Yellow Sky Blue	REX128128DWPP3L00000 REX128128DYPP3L00000 REX128128DSPP3L00000	128 x 128	4-line SPI / I2C	3V	'-20~+50	'-30~+70
1.18"	REX128128D+CTP		White	REX128128DWPP3L00000	128 x 128	4-line SPI / I2C	3V	'-20~+50	'-30~+70
1.54"	REX012864A+CTP		White Yellow Green	REX012864AWPP3L00000 REX012864AYPP3L00000 REX012864AGPP3L00000	128 x 64	6800,8080, 4-wire SPI,I2C	3V	'-10~+60	'-20~+70
2.23"	REP012832A+CTP		Yellow White	REP012832AYPP3L00001RE P012832AWPP3L00001	128 x 32	6800, 8080, 4-Wire SPI, I2C	3V	'-20~+70	' -40~+85
2.42"	REX012864J+CTP		Yellow White Sky Blue Green	REX012864JYPP3L00000 REX012864JWPP3L00000 REX012864JSPP3L00000 REX012864JGPP3L00000	128 x 64	8080 option 6800, 4-SPI, I2C	3V	'-20~+70	'-30~+80
2.42"	REX012864J+CTP		Yellow White Sky Blue Green	REX012864JYPP3L00000 REX012864JWPP3L00000 REX012864JSPP3L00000 REX012864JGPP3L00000	128 x 64	8080 option 6800, 4-SPI, I2C	3V	'-20~+70	'-30~+80
2.70"	REX012864Q+CTP		Yellow White Sky Blue Green	REX012864QYPP3L00000 REX012864QWPP3L00000 REX012864QSPP3L00000 REX012864QGPP3L00000	128 x 64	6800, 8000, 4-Wire SPI, I2C	3V	'-20~+70	'-30~+80

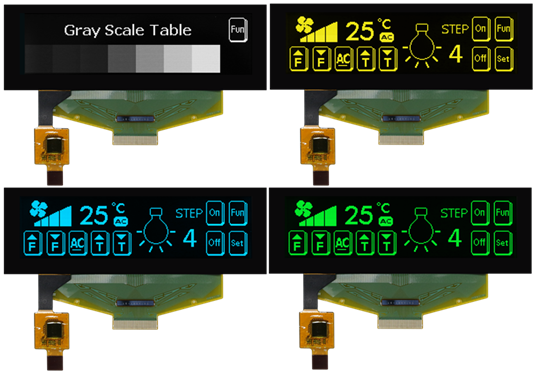

3.12"	RET025664B+CTP		White Yellow Sky Blue Green	RET025664BWPP3L00000 (★Support Grayscale) RET025664BYPP3L00000 RET025664BSPP3L00000 RET025664BGPP3L00000	256 x 64	6800,8080,SPI	3V	'-20~+70	'-30~+80
3.55"	REX025664D+CTP		White	REX025664DWPP3L00000	256 x 64	6800,8080,SPI	3V	'-20~+70	'-30~+80
